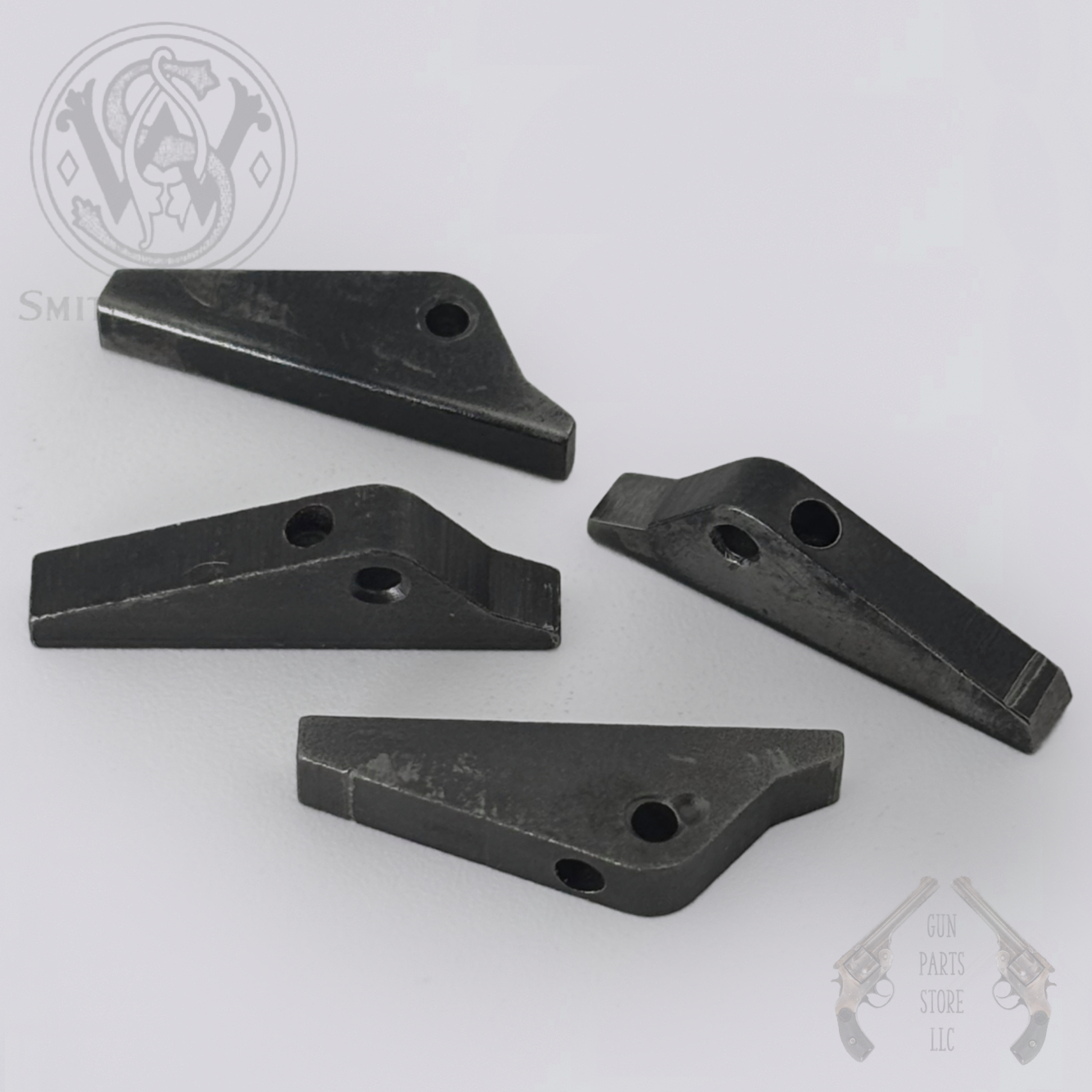

This is the S&W K L N Frame Sear, part 5113, blued finish.
Smith and Wesson cataloged sears by finish as well as frame size. This sear fits all K, L and N frame revolvers in the date ranges below, but it is blued and therefore not correct for stainless models that came with a stainless sear. Those use part 7039.
Included: One of the sears pictured. Sold individually.
Fits:
- K frame, 1957 to 1988 — Models 10, 15, 19, 64, 65, 66, 67 and similar
- L frame, 1980 to 1988 — Models 581, 586, 681, 686
- N frame, 1954 to 1988 — Models 27, 28, 29, 57, 58 and similar
Does not fit:
J frame revolvers. The small frame uses its own sear, part 5317 in blued and 7088 in stainless.
Post-1988 production. Smith and Wesson changed the fire control parts after that year across every frame size, so a revolver built in 1990 will not take this sear regardless of frame.
Victory Model and earlier revolvers. The hammer block was redesigned in 1944 after a wartime accident, and the hammer and sear on either side of that change are not the same part.
Fitting: This is a fire control part and should be fit by a qualified gunsmith. Pull the side plate and compare the nose, the holes and the overall profile against the sear in your revolver before installing. Once assembled, function check on an empty gun before loading: confirm the hammer holds at full cock, that it does not drop when the frame is bumped, that the trigger returns fully and the cylinder carries up and locks on every chamber in both single and double action. Watch for push-off at full cock. Do not load the revolver until it passes.
Please note: Buyer is responsible for verifying correct fit for their specific firearm. Installation should be performed by a qualified gunsmith. Please review all photos, as they are part of the description and show the actual item you will receive.
Condition: Used, in the original blued finish with the machining marks from manufacture still visible on the flats. No rust or pitting. The engagement notch is crisp on each, with no rounding or peening on the bearing faces. Light bright wear along the working edges from normal cycling.
Additional information
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 7 × 5 × 0.5 in |
| Part |
Sear |
| Brand |
Smith & Wesson |
| For Gun Make |
Smith & Wesson |
| Model |
Smith & Wesson K L N Frame Revolvers |
| Gauge/Caliber |
All Calibers |
| For Gun Type |
Handgun|Revolver |
| Country of Origin |
United States |
| Color |
White Steel |
| Material |
Steel |
| MPN |
5113 Double Actio Sear |
